Motore U-Turn

Description

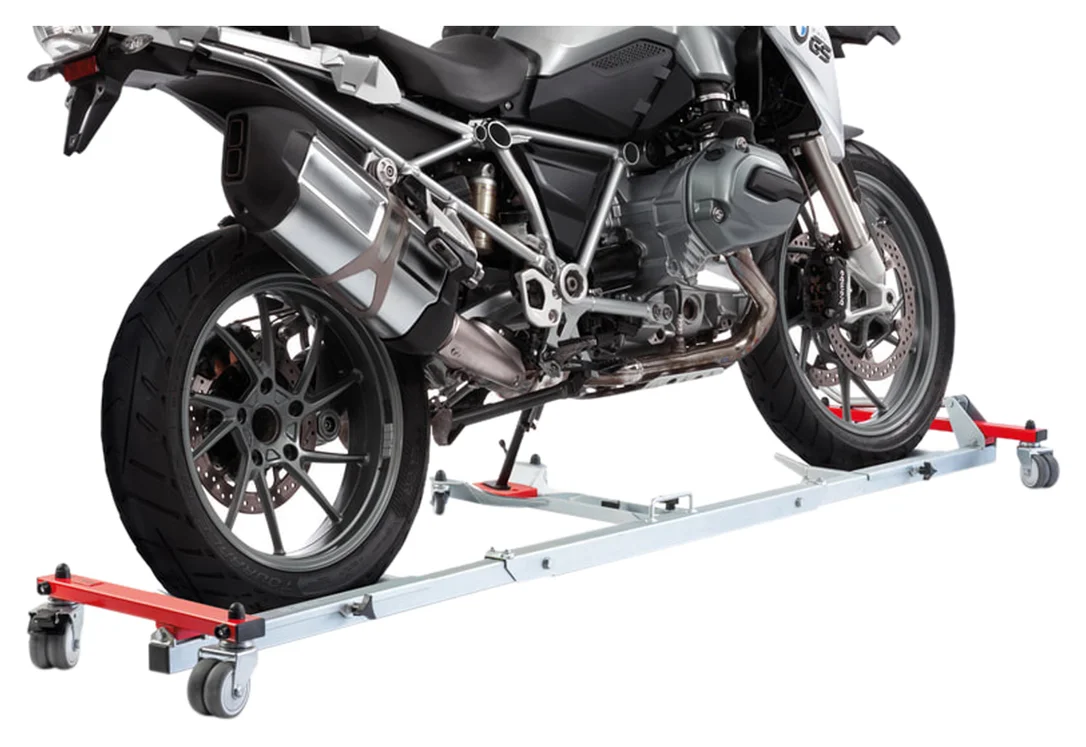

The challenge: you want to move your motorbike in a confined space. The solution: Acebikes *U-Turn Moto Mover L* motorbike transporter for workshops or garages. You can adjust it precisely to the size/dimensions of your bike without tools. Then place the ‘trolley’ in the correct position and lift the motorbike a few centimetres using the lever. High-quality swivel castors make the *U-Turn Motor Mover L* easy to move. This allows you to turn, move and position it together with your motorbike as needed. The Acebikes *U-Turn Moto Mover L* motorbike transporter has a low weight. It can be folded up and stowed away in no time at all.

• For convenient lifting and moving of your motorbike
• Lightweight and durable materials
• Perfect for use in confined spaces
• High-quality swivel castors
• Foldable for easy storage
• Adjustable without tools
• Suitable for motorcycles with a maximum length of 221 cm, a wheelbase of 132 to 165 cm and a weight of up to 300 kg
• Material(s): steel / rubber / ABS
• Powder-coated / galvanised
• Net weight: 21 kg
• Gross weight: 24 kg
• Product size when folded (L x W x H): 102 x 66 x 83 cm
• Product size unfolded (L x W x H): 234 x 66 x 23 cm
• Maximum load capacity: 300 kg
• Maximum length: 221 cm, wheelbase: 132 – 165 cm
• Maximum tyre width: 200 mm

Safety/General Information

• Please read the assembly instructions carefully before assembling and using the product.
• Please note that Acebikes accepts no liability for consequential damage or damage caused by improper assembly or use of the product.
• The Acebikes *U-Turn Moto Mover* motorcycle transporter is only intended for manoeuvring. Do not store the motorcycle in a raised position on the mover for long periods of time. After manoeuvring, release the lever to lower the motorcycle to the ground.

Good to know:

• Two people are recommended for initial setup and commissioning.
• A smooth surface (concrete floor, concrete slabs) is recommended for manoeuvring the U-Tum Motor Mover.

Scope of delivery:

• 1 x Acebikes *U-Turn Motor Mover L*
• 1 x Operating instructions
